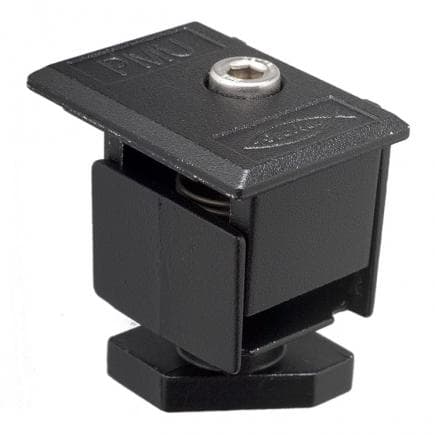

FISCHER 534352 - Pre-assembled single adjustable clamp black PMU

Description

Terminal preassembled adjustable single PM U The central and final universal clamp for all photovoltaic modules with thickness from 30 to 50 mm Benefits: * Full range: the universal clamp preassembled PM U can fix all PV modules with a thickness from 30 mm to 50 mm. * Versatile: the universal clamp preassembled PM U is usable both as an end terminal and how the central terminal. * Rapid: thanks to the smart universal clamp preassembled PM U nut can be engaged and locked quickly at any point of the support profile. * Compact: the recessed screw in the element avoids problems obreggiamento on adjacent modules.Convenient: thanks to the spring of the universal clamp preassembled PM U remains raised during the tightening phase. * Complete: the universal clamp preassembled PM U does not require additional elements (eg, screws, washers, nuts). Versions: * Clamp made of aluminum alloy EN AB 46100 according to EN 755-2: 2013 * Screw with cylindrical head with hexagon socket head insert encased in stainless steel A2-70 according to EN ISO 3506-1 / 2: 2009 Suitable for: * Coverage System pitched with hooks * Flat roof system with triangles * Corrugated sheet metal covering system * Coverage System in corrugated sheets * Special structures System To attach the photovoltaic modules on the profiles: * Solar-light * Solar-fish * Solar-mid * Solar-flat * Solar 40/30 Function: * Insert the lower part of the universal clamp preassembled PM U in the upper slot of the profile. * Turn the universal clamp preassembled PM U clockwise to use it as a final clamp and counterclockwise to use it as a central terminal. * Lock the photovoltaic module by applying a tightening torque to the screw with a cylindrical head with hexagon socket (TCEI) of 10 Nm * (Optional) To protect the installation insert the anti break-in collection DAE hexagonal sphere. Clé de serrage [mm] : 6 Couple de serrage [Nm] : 10 Épaisseur panneau : 30 / 50 Filetage : M 8 Longueur de la vis [mm] : 40 Poids : 0,12
