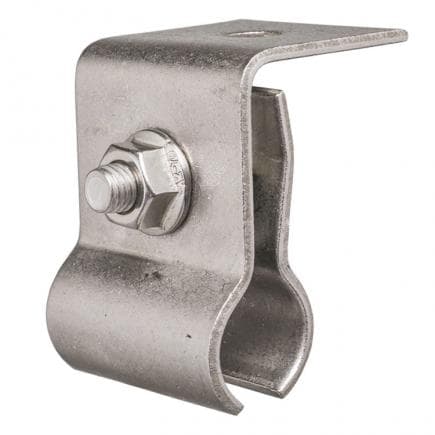

FISCHER 536782 - Seamless sheet metal hook Kalzip DLAK A2

Description

Sheet metal hook seam DLAK The universal bracket for photovoltaic installations of sheet metal standing seam type Kalzip Support materials: * X5CrNi 18-10 bracket in stainless steel according to EN 10088-2: 2005 class A2-70 * Stainless steel bolts to EN ISO 3506- 1/2; 2010 Advantages: * Complete: the hook is delivered pre-assembled and connection accessories for Solar profiles are included. * The carriage bolts with square neck preassembled allow for quick installation. Suitable for: Standing seam roofing rounded Kalzip type with: * Profile Solar-lightProfile Solar-fish Function: * Define the spacing of the hooks on the basis of snow and wind loads of the installation of the system area. * The position of the hooks in relation to the supporting structure and the layout of the plant. * The hooks and tighten the screws with the tightening torque. * Installation it is advisable to interpose a sheet of adhesive tape butyl CG INT between the cover plate and the DLAK hooks. Charge de compression recommandée [kN] : 0,5 Clé de serrage [mm] : 13 Contenu : 50 DLAK A2 Couple de serrage [Nm] : 25 Épaisseur : 2,5 Poids : 0,25
